自動涂膠基本過程
Basic process of automatic gluing
1.測寬：第一次使用或鋁框?qū)挾雀淖兒螅枰獙︿X條進行測寬，以便傳送時鋁框順利通過膠嘴。
1. Width measurement: after the first use or the width of the aluminum frame is changed, the aluminum strip needs to be measured so that the aluminum frame can pass through the rubber nozzle smoothly during transmission.
2.加熱：進入自動狀態后，膠嘴和膠盤要行加熱，同時傳送帶轉動，以免膠嘴溫度升高后將傳送帶燙壞，溫度高于80度以后打膠流程才會起效。
2. Heating: After entering the automatic state, the rubber nozzle and rubber plate shall be heated first, and the conveyor belt shall rotate at the same time, so as to prevent the conveyor belt from being damaged after the temperature of the rubber nozzle rises, and the gluing process will take effect only after the temperature is higher than 80 degrees.
3.傳送打膠：當達到設定溫度后，手持鋁框放在傳送帶上，當前端打膠光電檢測到鋁框時，自動涂膠過程開始。打膠光電有信號后，延時一段時間，前壓輪下壓，壓住鋁框；前壓輪下壓后延時一段時間，膠缸前進，膠嘴出膠。開始涂膠后，再延時一段時間，后壓輪下壓。打膠光電信號消失后，延時一段時間，前壓輪抬起，前壓輪抬起后，再延時一段時間，膠缸停止前進，同時膠嘴停止涂膠；停止涂膠后，再延時一段時間后，后壓輪抬起，鋁框一邊涂膠完成。
3. Transfer gluing: when the set temperature is reached, the hand-held aluminum frame is placed on the conveyor belt. When the aluminum frame is detected by the current end gluing photoelectric detector, the automatic gluing process starts. After there is a signal from the gluing photoelectric device, delay for a period of time, and press down the front pressing wheel to press the aluminum frame; After the front pressing wheel is pressed down, the rubber cylinder will move forward and the rubber nozzle will discharge. After the gluing is started, delay for a while, and press down the rear roller. After the photoelectric signal of glue application disappears, delay for a period of time, and the front roller lifts. After the front roller lifts, delay for a period of time, and the rubber cylinder stops moving forward, and the rubber nozzle stops applying glue; After stopping the gluing, after a further delay, the rear pressing wheel lifts and the gluing on one side of the aluminum frame is completed.

之后重復傳送打膠流程，將鋁框剩余三邊全部涂上丁基膠，鋁框涂膠就全部完成。
After that, repeat the transmission and gluing process. Apply butyl glue to the remaining three sides of the aluminum frame, and the gluing of the aluminum frame will be completed.
因為大多數鋁框為方形而少數為圓形，所以在自動中可以進行方形和圓形的切換。當為圓形框涂膠時，中間壓輪壓住圓框，同時皮帶轉動，膠嘴出膠，松開腳踏開關該過程停止。
Because most aluminum frames are square and few are round, you can switch between square and round automatically. When applying glue to the round frame, the middle pressing wheel presses the round frame, while the belt rotates, the glue nozzle releases glue, and the process stops when the foot switch is released.
以上就是為大家介紹的有關雙組份打膠機詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務http://www.hebeiruizhi.com

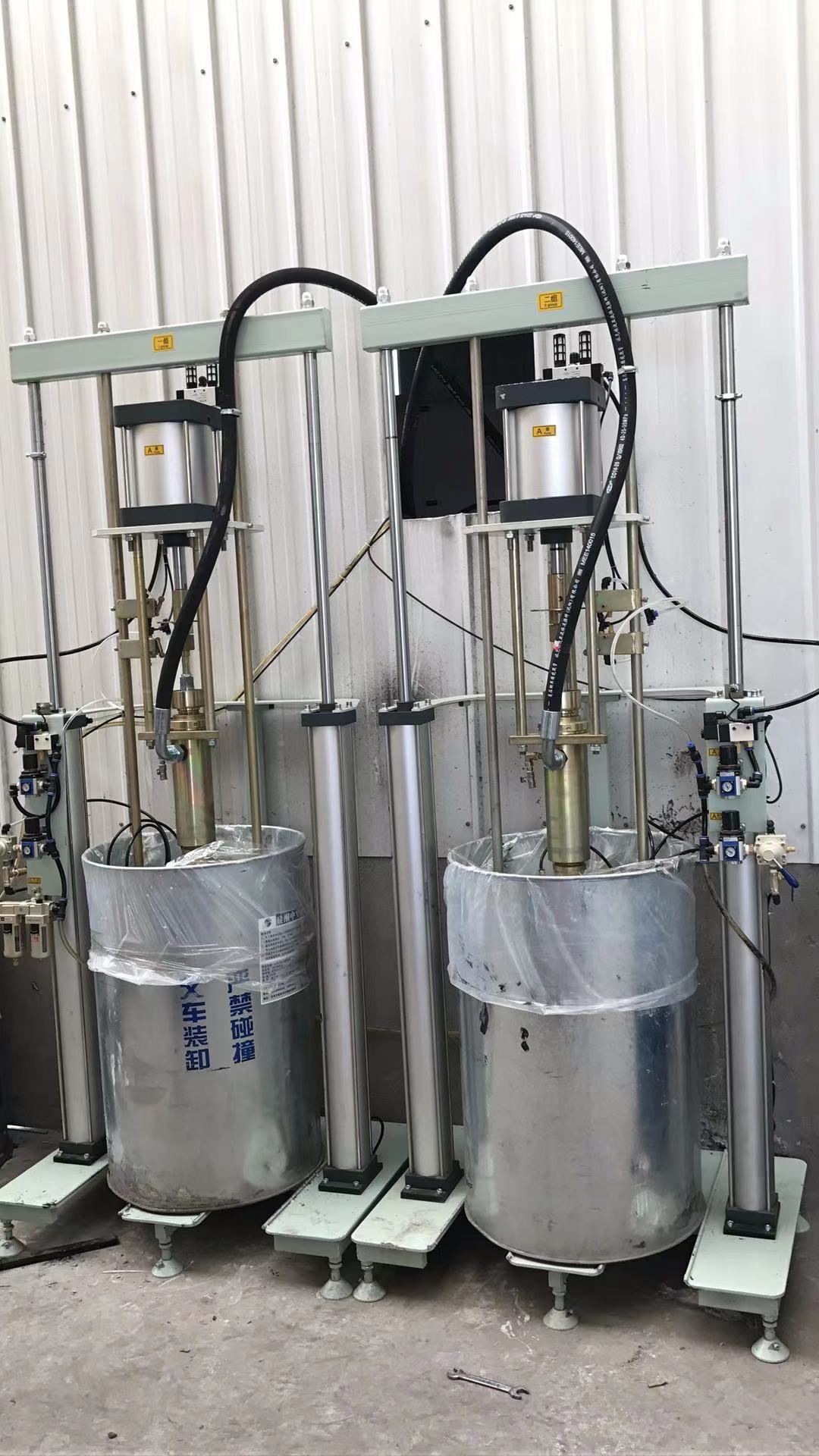

The above is a detailed introduction to the two-component sealant dispenser, and we hope it will be helpful to you. If you have any questions, please contact us. We will provide you with our service in the same manner http://www.hebeiruizhi.com
